HP10142 (Basic) 12V HP325 Series Air Compressor Kit [Replacement Kit]
With 60-Day Money Back Guarantee
If you’re not satisfied, you may remove the products and return to Pacbrake for a refund within the first 60 days after your purchase as per our Returns Policy.
Check Stock - Kit #HP10142
Region
In Stock
Canada
In Stock
United States
In Stock
NEED THIS PRODUCT PROFESSIONALLY INSTALLED?
Locate an authorized Pacbrake dealer near you.
Overview
Get quick and effortless inflation power at your fingertips with Pacbrake's robust compressors!
Product Description
Pacbrake's HP325 Series Air Compressors have a 33% duty cycle
(20 minutes @ 100 psi) and are offered in both
12 VDC (HP10142) and 24 VDC (HP10151).
These 1⁄4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a hard anodized aluminum sleeve.

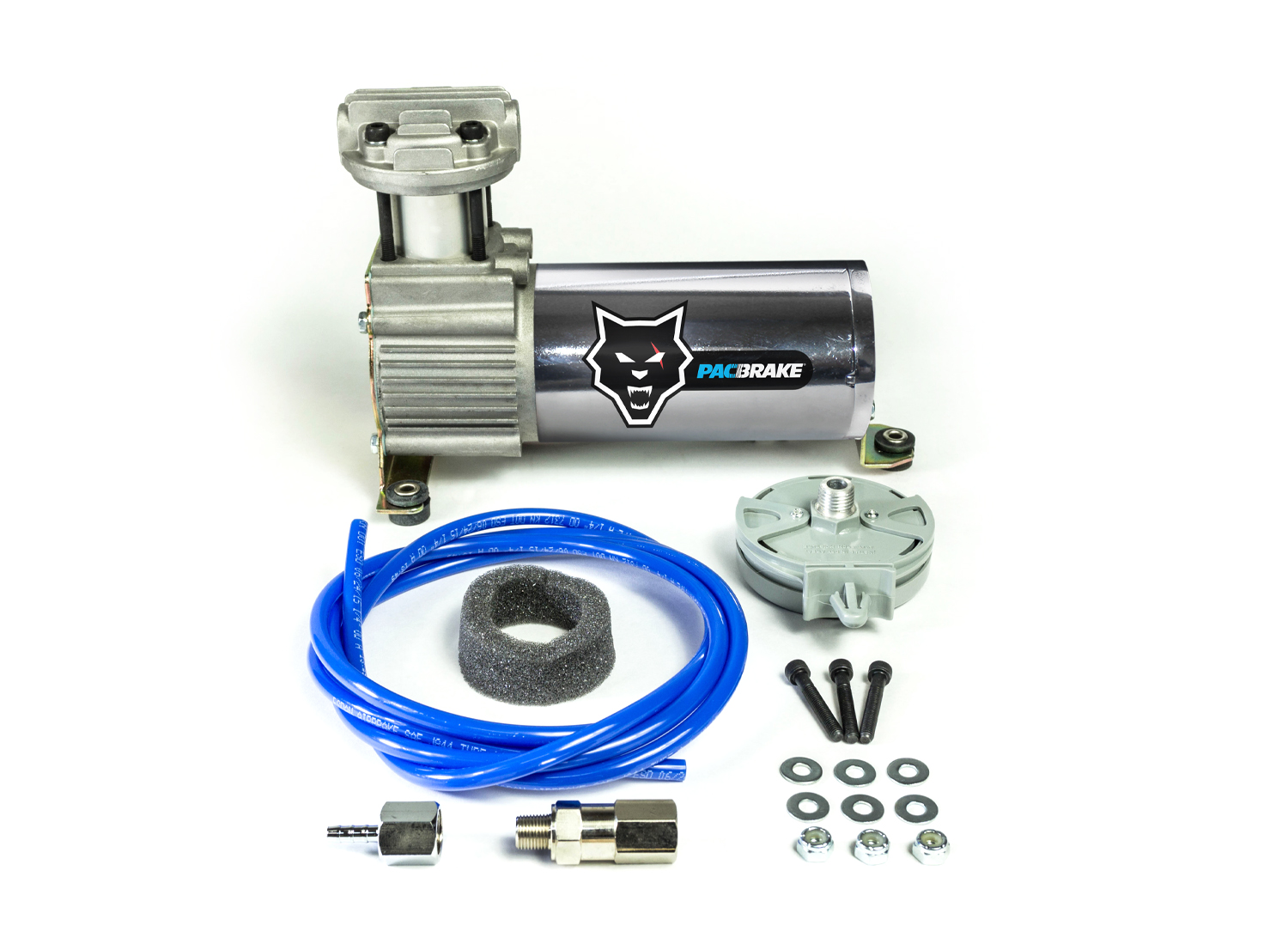

Kit Details:
- Basic / Replacement HP325 Series Air Compressor Kit - Chrome finish
- Includes installation hardware only
- Does not include any pre-built harnesses (See Premium Kit: HP10066)
- 8.7 inch x 4 inch x 6.2 inch (LxWxH) / [221mm x 102mm x 158mm]
- 5.5 lbs [2.49kg]
Vehicle Application
- Universal
Application Notes
- Not approved for use with tanks over 2.5 gallons
Features
- Voltage: 12 VDC
- Duty Cycle: 33% (20 minutes @ 100 psi)
- Horsepower: 1/4 HP
- Max Working Pressure: 150 psi [1034 kPa]
- Finish: Chrome
MANUALS, GUIDES & DOWNLOADS
12 VDC 325 SERIES COMPRESSOR — FILL TIMES | |||
---|---|---|---|
TANK SIZE |
TANK PART # |
0 to 100 psi |
100-150 psi |
1/2 Gallon |
HP10053 |
23 seconds |
23 seconds |
2 1/2 Gallon |
HP10050 |
157 seconds |
130 seconds |
12 VDC 325 SERIES COMPRESSOR — SPECIFICATIONS | |
---|---|
GENERAL DATA | |
Part Number |
|
Weight |
5.5 lbs [2.49 kg] |
Ambient Temperature Range |
-40°F to 158°F [-40°C to 70°C] |
Max Duty Cycle |
33% (20 minutes @ 100 psi) |
Ingress Protection |
IP55 w/remote intake (included) |
PNEUMATIC DATA | |
Rated Flow |
1.1 SCFM |
Max Working Pressure |
150 psi [1034 kPa] |
Max Restart Pressure |
135 psi [931 kPa] |
ELECTRICAL MOTOR DATA | |
Motor Type |
Permanent magnet DC |
Operating Voltage |
12 VDC ± 15% |
Maximum Current Draw |
17 A |
Nominal Power |
1⁄4 HP |
Nominal Speed |
3000 RPM |
