Overview

NOT FOR SALE - ARCHIVED FOR REFERENCE ONLY

Product Description

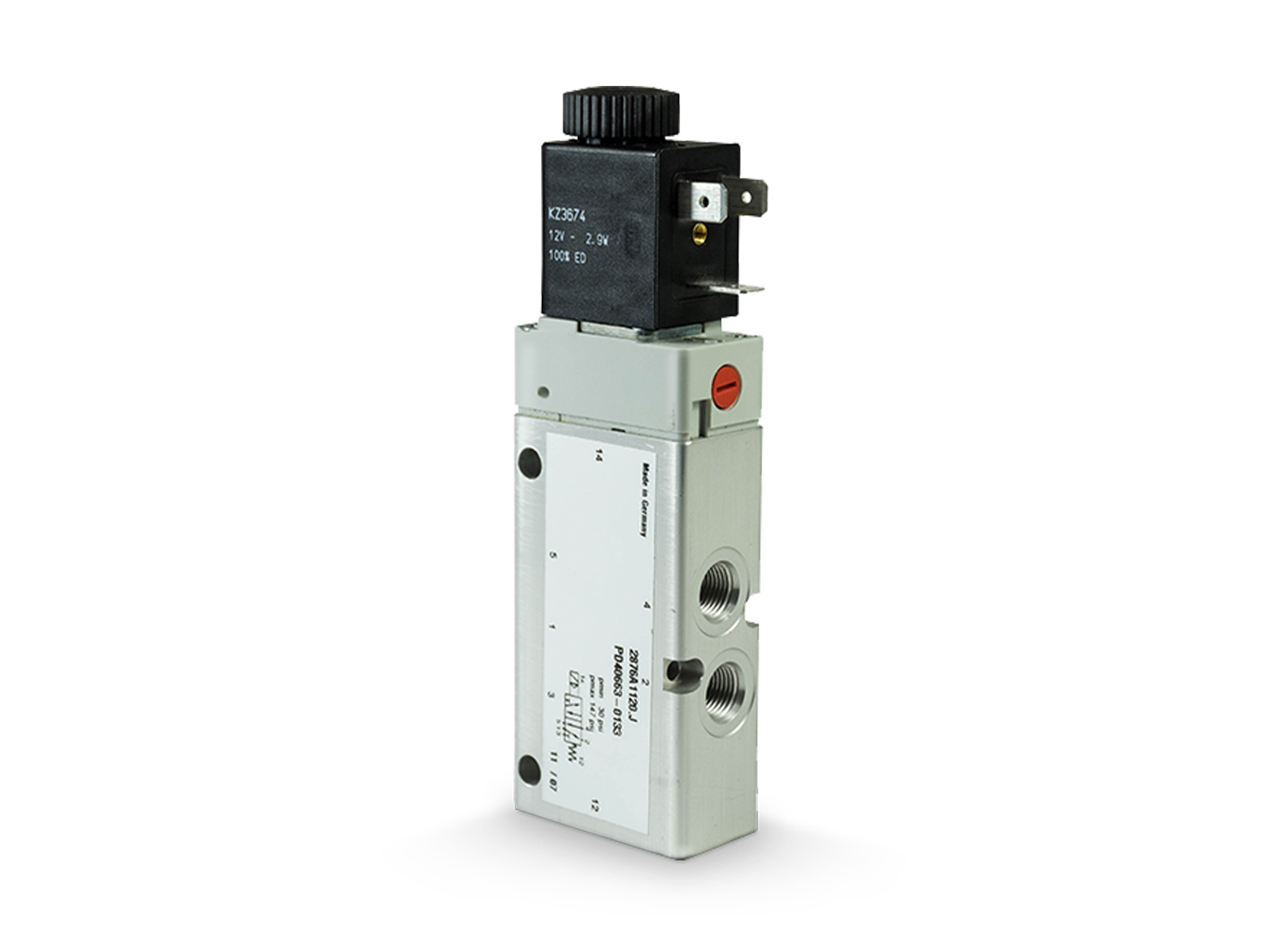

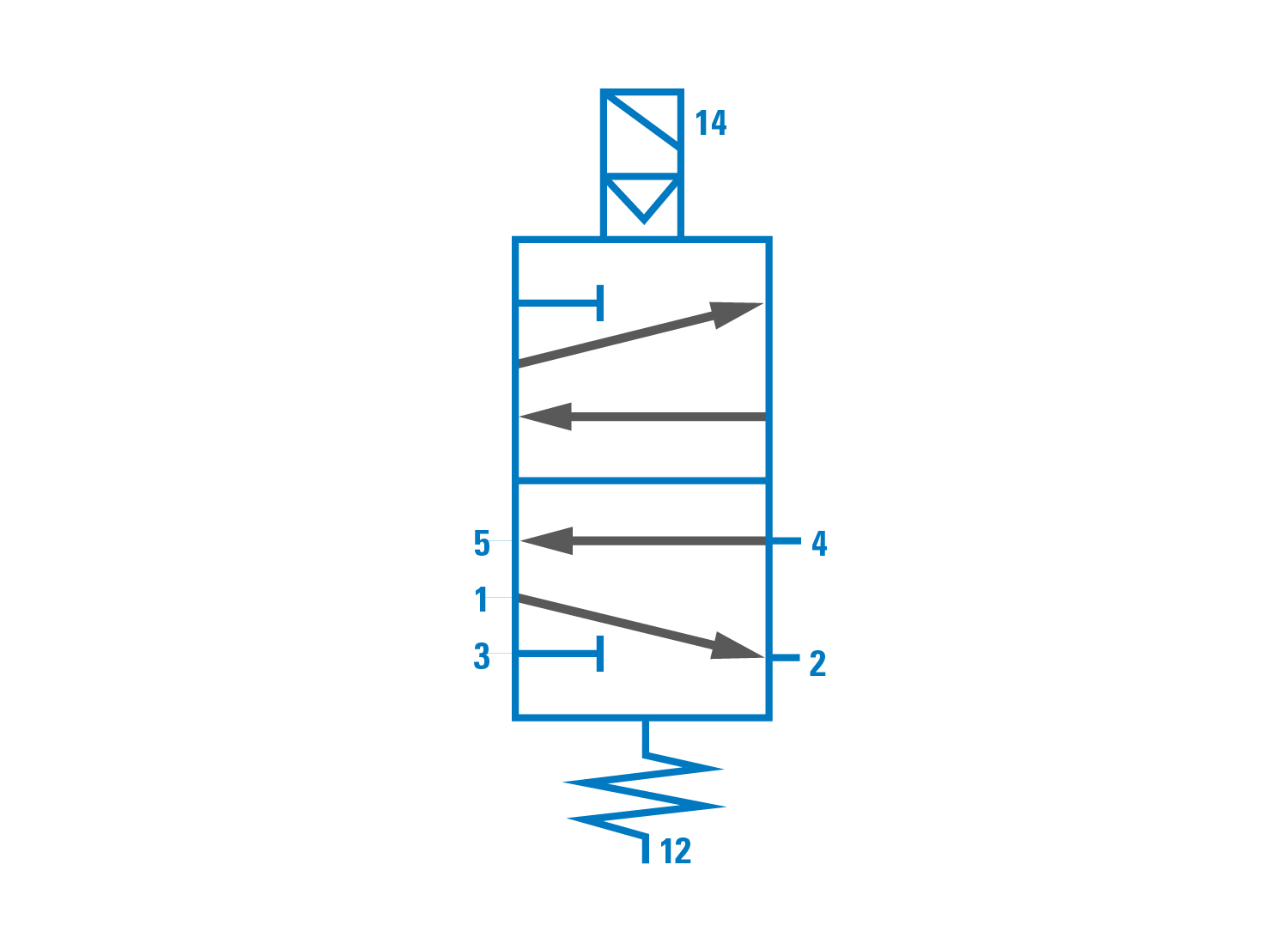

5/2-Way, 12 VDC Pneumatic Solenoid
  • Single Solenoid with Spring Return
  • Continuous Duty Cycle
  • IP65 to DIN 40050 with Plug Protection
  • 5 x 1/8" - 27 NPT Ports

Features

  • 1/8" - 27 NPT — 5 Ports
  • Voltage Range: 12 VDC

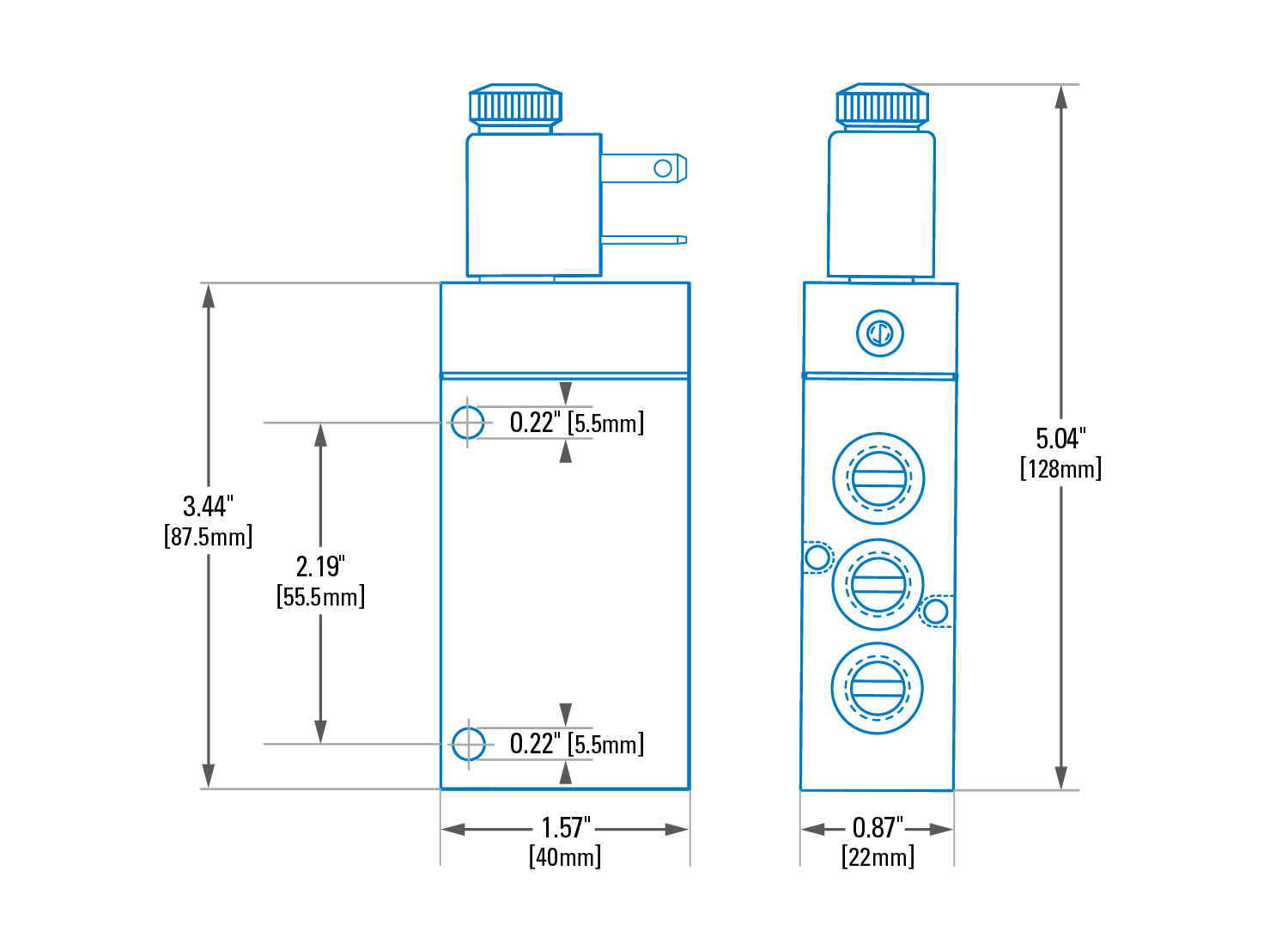

5/2-WAY 12 VDC SOLENOID VALVE
SPECIFICATIONS
Ambient Temperature Range
14°F to 140°F [-10°C to 60°C]
Maximum Working Pressure
29 psi to 145 psi [2 bar to 10 bar]
Flow CV
0.5 | [500 min]
Port(s)
1/8" - 27 NPT  (2 Ports)
Weight
0.62 lbs [0.28 kg]
