HP30040-CB2 BRAVO Wireless Air Controls Combo Kit - 2.5 Gallon Air Tank

Name: HP30040-CB2 BRAVO Wireless Air Controls Combo Kit - 2.5 Gallon Air Tank
Brand: PACBRAKE
SKU: HP30040-CB2
Price: 1973.84 USD
Availability: InStock

Overview

Meet the HP30040-CB2 - Pacbrake's most complete Wireless Air Control Kit. This combo kit pairs wireless air management with a ½-gallon air tank, moisture protection, and full accessory capability - everything you need to run a serious onboard air system right out of the box.
Want an independent remote control in addition to phone app control? Just add an HP10660 remote to your order.

Product Description

The HP30040-CB2 gives you the full BRAVO™ experience without the guesswork of piecing it together. Wireless control, stored air capacity, DriAir™ moisture protection, and a complete accessory kit - all bundled and ready to install. No drilling, no cutting, and no sourcing separate components. Just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly that's up and running in under an hour.

WHAT'S INCLUDED

HP30040-QM – Wireless Air Control Kit with 425 Series compressor. Up to 150 PSI, 1.75 CFM, and 100% duty cycle at 100 PSI. IP67-sealed for total weatherproof durability.

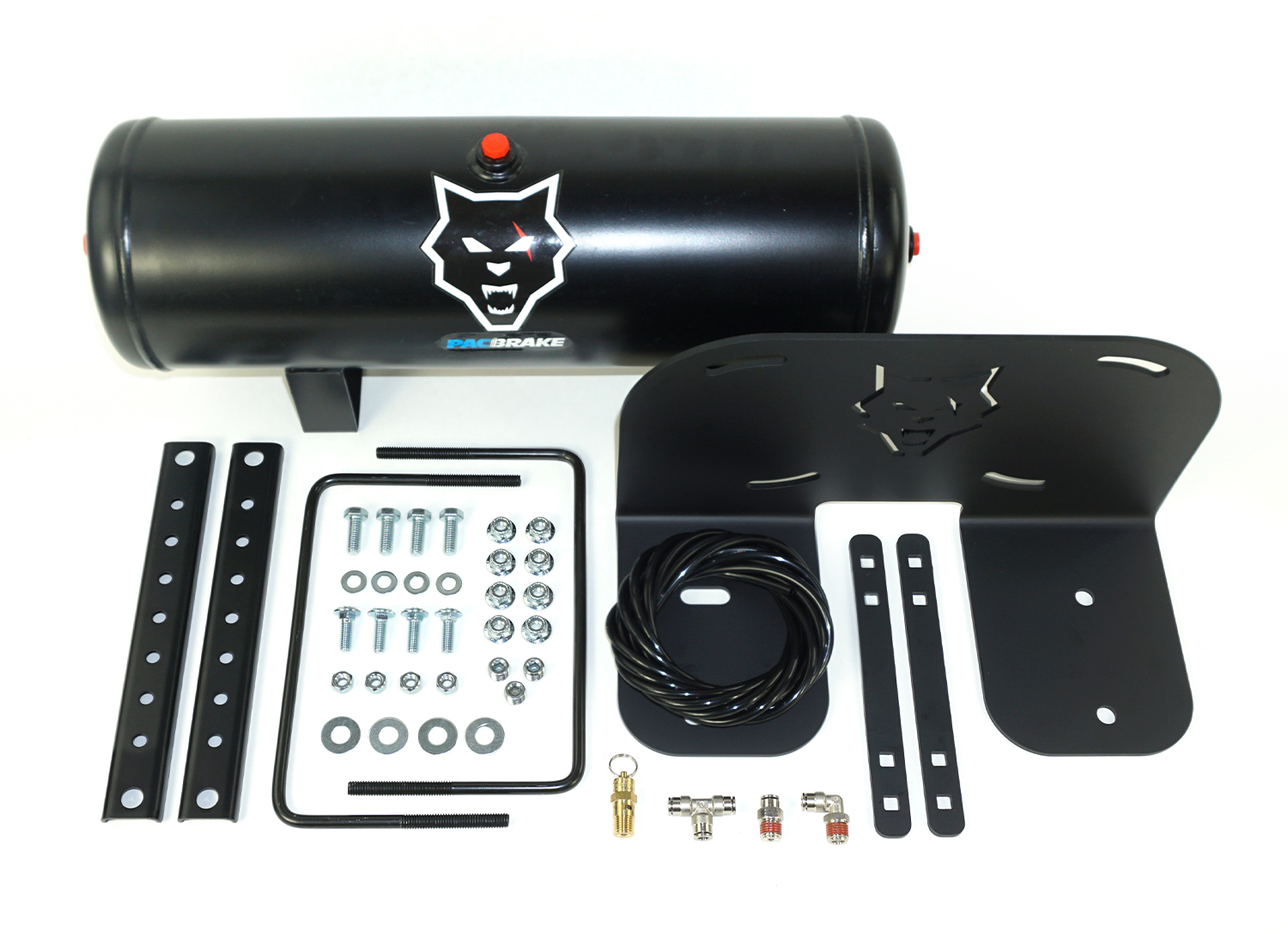

HP10719 – 2.5-Gallon Air Tank Kit. Carbon steel construction with black powder-coated finish, internal anti-rust coating, and quick-mount bracket. Built for users who need greater air reserve and faster response under heavier loads.
HP10720 – Water Separator Kit. Silica bead desiccant with automatic solenoid drain removes moisture from the air system, protecting against freeze blockage and extending component life. Maintenance reminders through the BRAVO™ mobile app.
HP10723 – Onboard Air Accessory Kit. Includes a 25 ft coiled air hose, blow gun with interchangeable nozzles, dual-head tire chuck and pressure gauge, multiple inflation adapters, and a heavy-duty nylon storage bag.

SPECIFICATIONS

Ambient Operating Temperature Range: -40°F to +158°F [-40°C to +70°C]
Maximum Working Pressure: 150 PSI [1034 kPa]
Compressor Duty Cycle: Continuous at 100 PSI [689.5 kPa]
Ingress Protection: IP67 (Requires compressor with remote-mounted intake filter)
Wireless Connectivity Range: 30 ft [10 m] minimum
Air Tank Capacity: 2.5 gallon
Air Tank Dimensions: 21" x 6.9" x 8.4" [534mm x 175mm x 213mm]
Water Separator Inlet/Outlet: ¼" Push-to-Connect 90° Swivel | Desiccant: Silica Bead | Drain: Automatic Solenoid
Air Accessory Hose Length: 25 ft coiled | Quick Connect: ¼" Industrial Interchange

ADD-ONS FOR EVEN MORE CONTROL

Standalone Remote Available - Prefer to keep it simple? Add the HP10660 handheld remote for full air spring control after successful set-up within the mobile BRAVO Wireless Control App.
*Please note: A mobile app is required for initial set-up, servicing, and system notifications.

WANT A MORE COMPACT OPTION?

HP30040-CB1 (1/2 gallon option): Same complete kit with a ½-gallon air tank, ideal for applications where space is limited and a smaller air reserve meets your needs.

🔧 For Guys Who Expect More from Their Truck and Their Gear

The HP30040-QM is made for truck owners who don’t cut corners. If your pickup sees real work and real weight, this is the wireless control system you want backing your air springs. Engineered for maximum output and rock-solid reliability, it’s the smart upgrade that delivers serious value.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DOWNLOAD THE APP HERE:

*Please note: A mobile app is required for initial set-up, servicing, and system notifications.

Vehicle Application

Universal

Application Notes

Works with all existing air spring products
Compatible with iOS™ and Android™ devices

Features

Waterproof 425 Series Compressor – Up to 150 PSI, 100% duty cycle at 100 PSI, and a 1.75 CFM fill rate. Sealed to IP67 for total weatherproof durability in any conditions.
Ultra Easy Install – No drilling or cutting required. Push-to-connect air fittings and pre-assembled wiring harness connectors get you up and running in under an hour.
2.5-Gallon Air Tank – High-capacity stored air for the fastest fill times and maximum reserve. Carbon steel with powder-coat and internal anti-rust protection. Five ¼" NPT ports for flexible accessory integration.
DriAir™ Moisture Protection – Silica bead desiccant with automatic solenoid drain keeps compressed air dry, prevents freeze blockage, and extends component life.
Full Accessory Kit Included – Inflate tires, run pneumatic tools, or top up gear with the 25 ft coiled hose, tire chuck, blow gun, adapters, and storage bag.
Wireless Smartphone Control – Adjust air spring pressure from the cab. No more stepping out in the rain or snow to hunt down an air pump.
Real-Time Pressure Feedback & Setup Assist™ – Monitor your PSI live and catch leaks before they become problems, right from the mobile app.
Single or Dual Path Mode – Start with simultaneous fill and upgrade to independent left/right control later, all without buying a new kit.
Ignition switched power for zero parasitic battery drain.
Ultra quiet operation for maximum comfort.
