HP10720 Water Separator and Desiccant Kit

Overview

The HP10720 Water Separator Kit features Pacbrake's exclusive DriAir™ Technology - an innovative system combining an active water separator with desiccant filtration to keep your air lines dry, freeze-free, and corrosion-free.

Product Description

The HP10720 Water Separator Kit integrates with BRAVO™ air management systems to eliminate moisture at the source. DriAir™ Technology runs a two-stage defence: the water separator pulls free water out of the compressed air stream, and the silica bead desiccant captures what's left before it can reach your air springs or lines.

The solenoid auto-purges collected water on its own - no manual draining required, unlike competing systems that put that job on you. When the desiccant needs replacing, the BRAVO™ mobile app notifies you automatically.

KIT DETAILS

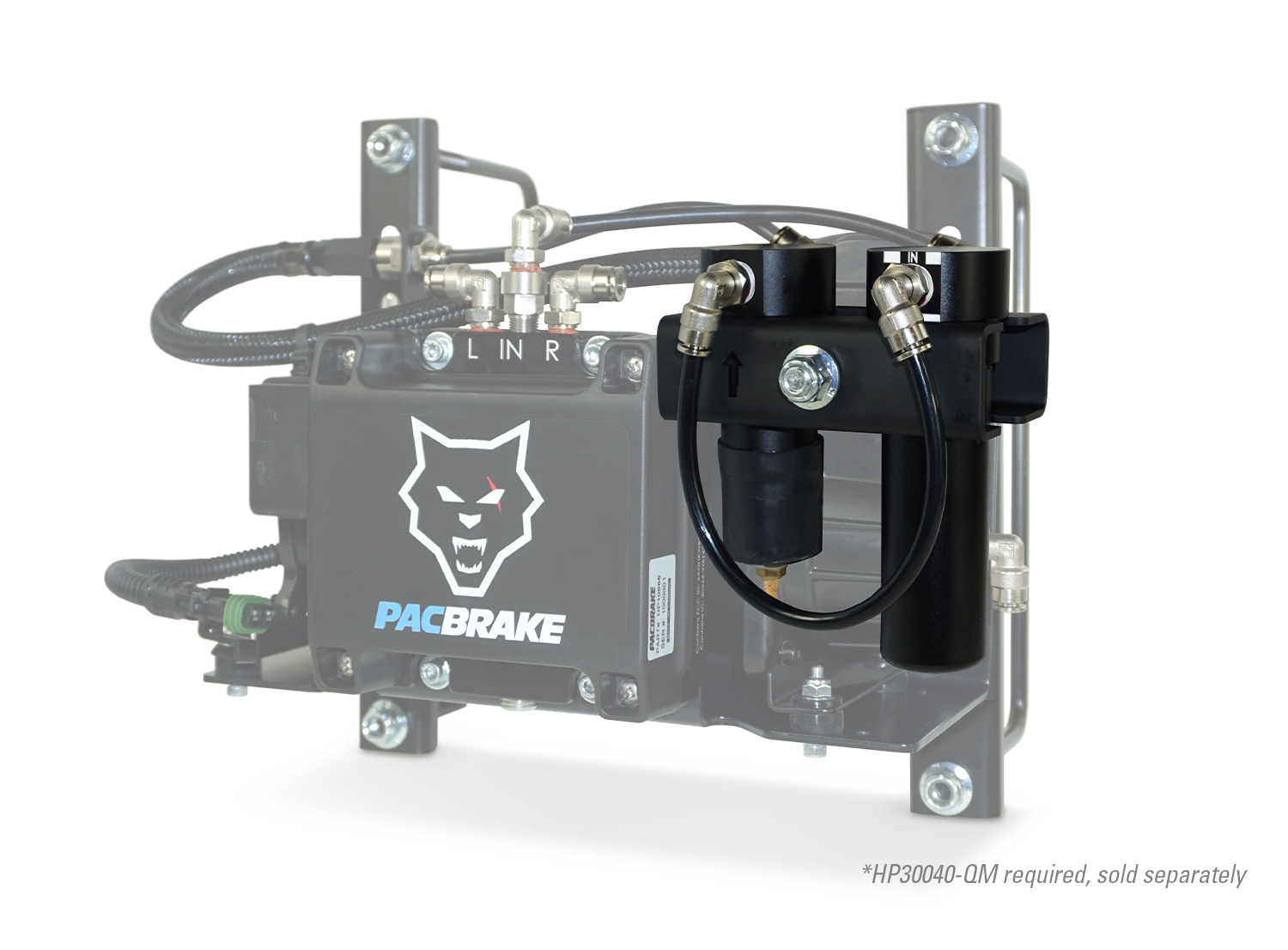

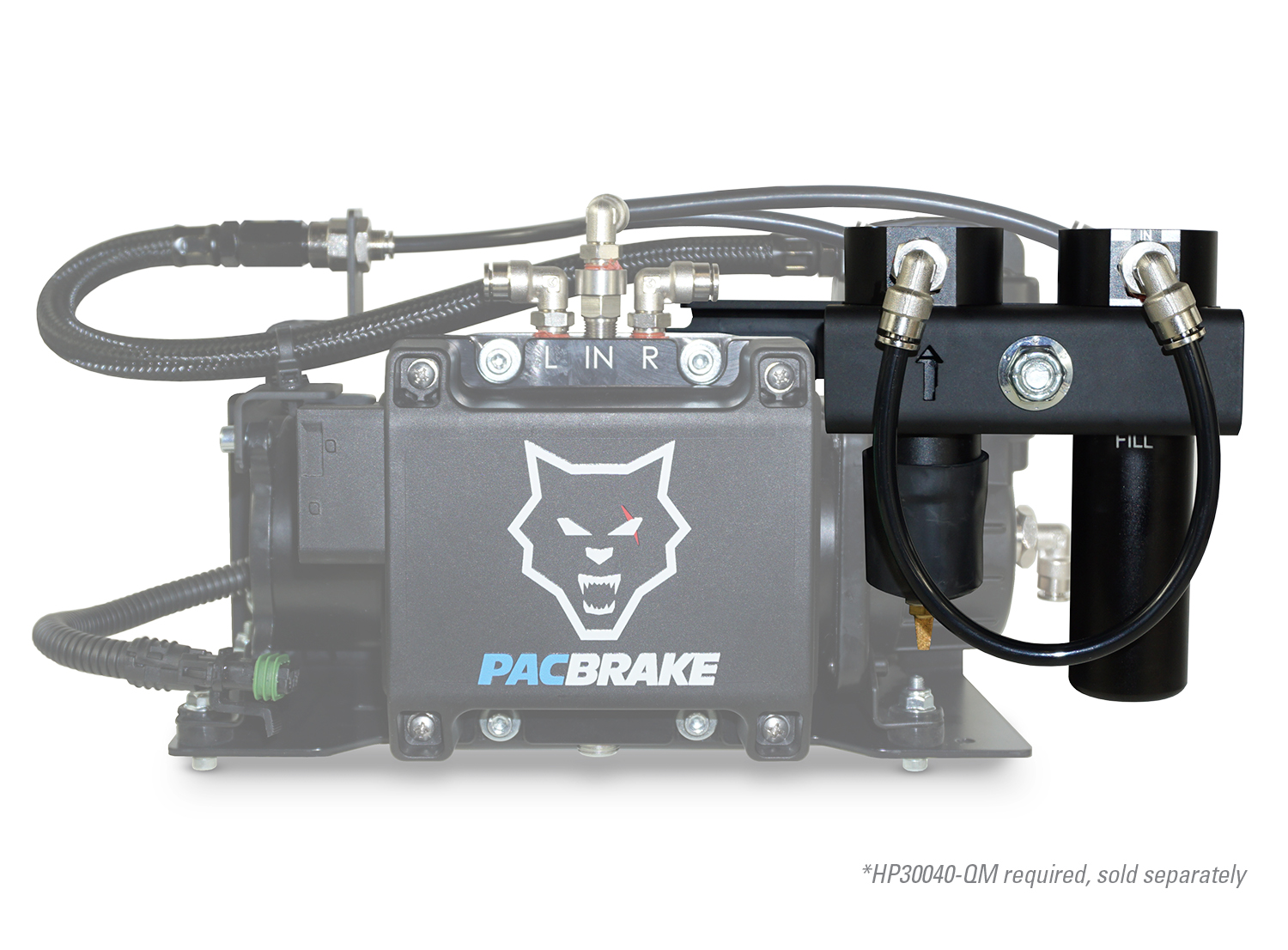

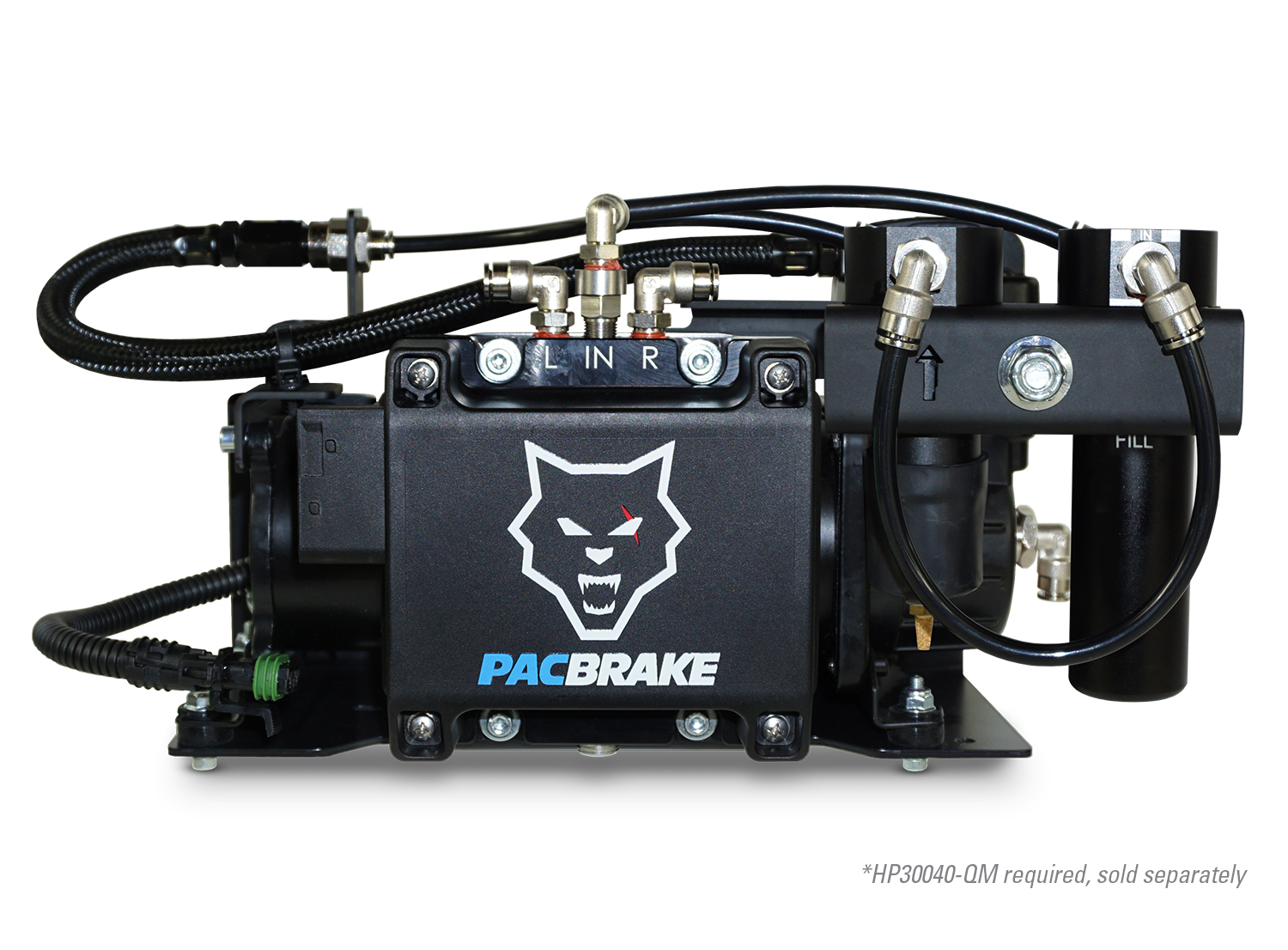

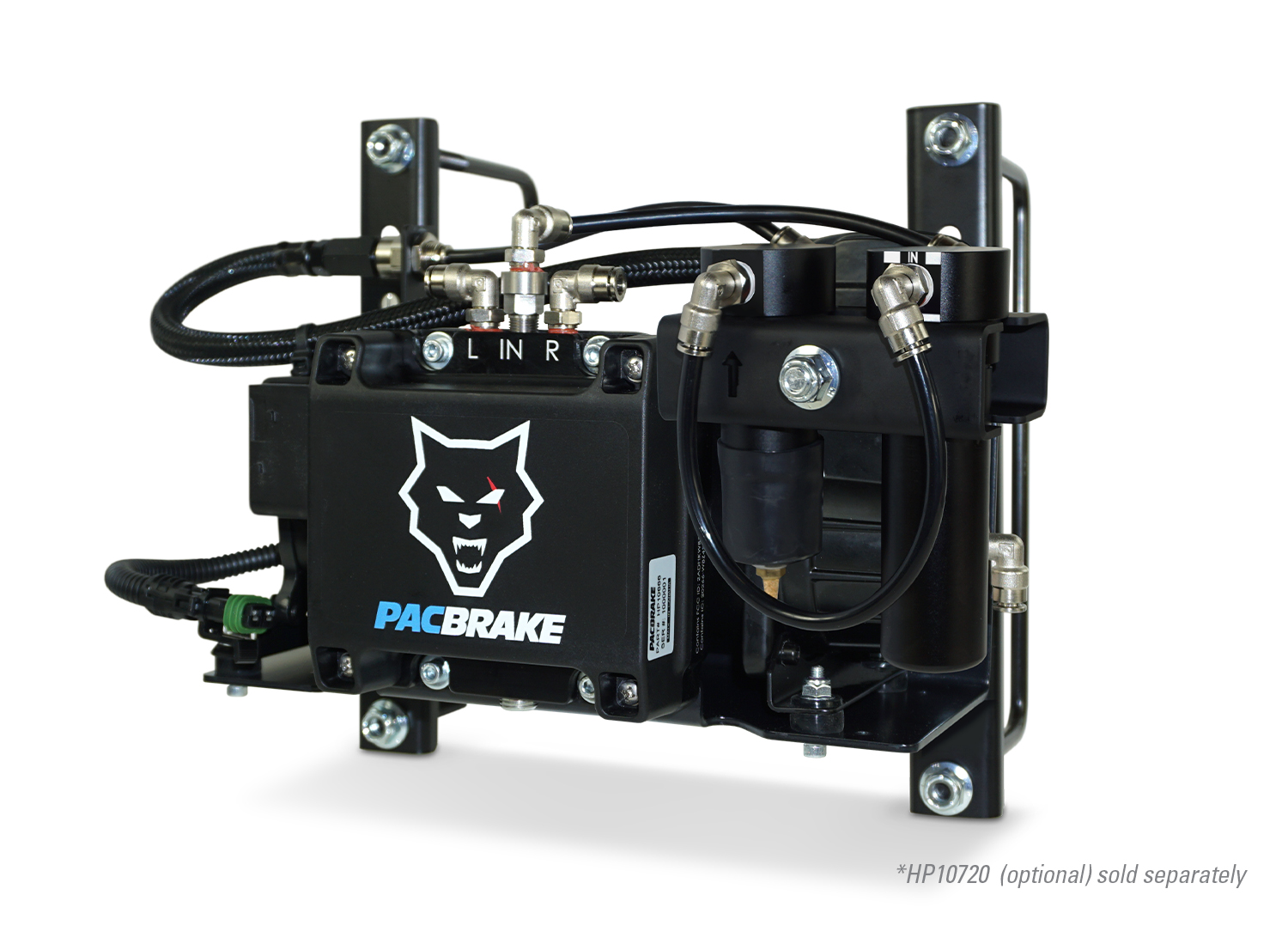

Water Separator with Integrated Bravo Mount
Silica Bead Desiccant (installed)
Spare Desiccant (1 included)
Installation Hardware

SPECIFICATIONS

Max Working Pressure: 150 psi [1.03 MPa]
Inlet/Outlet Configuration: 1/4” Push-to-Connect 90° Swivel
Desiccant Type: Silica Bead
Drain Type: Automatic Solenoid
Drain Port: 1/4” Sintered Brass Filter
Operating Temperature: -40°C to 70°C
Dimensions: 8.8 inch x 3 inch x 5.2 inch (LxWxH) [222mm x 76mm x 133mm]
Weight: 2 lbs [ 0.92 kg]
Mounting Type: Bravo Compressor Mounting Bracket

Vehicle Application

BRAVO systems only

Features

DriAir™ Two-Stage Moisture Control.
Purges collected water automatically.
Prevents ice blockages without methanol-based antifreeze additives.
Stops moisture and prevents blockages from frozen moisture in cold-weather operation.
The BRAVO™ mobile app tracks and notifies you when the desiccant needs replacement.
Ultra Easy Installation with Quick-Mount Bracket.
