HP30040-QM-R BRAVO Wireless Air Controls (3rd Gen), XD Compressor

Overview

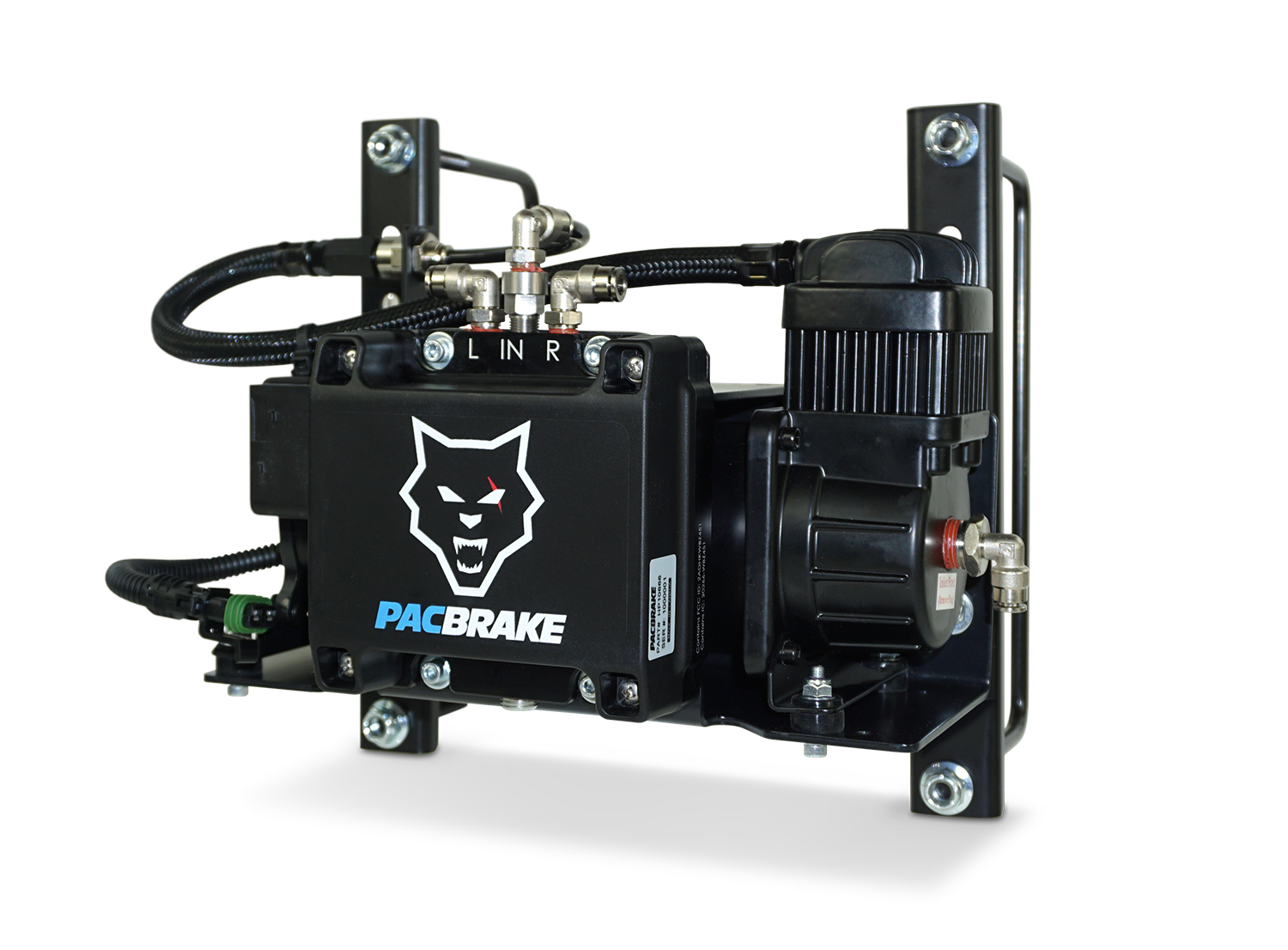

Meet the HP30040-QM-R — Pacbrake's most capable Wireless Air Control Kit. Built around the high-output 425 Series compressor, it delivers up to 150 PSI, 1.75 CFM, and a 100% duty cycle at 100 PSI. Whether you're towing a toy hauler through the mountains or hauling heavy on the job site, this system gives you unmatched air support without compromise.

Product Description

The HP30040-QM-R puts full wireless control of your air suspension system right in your hand. No drilling, no cutting - just push-to-connect fittings, plug-in wiring, and a sealed waterproof assembly that's ready to work in under an hour. Manage pressures, set inflation presets, and monitor your system live from the redesigned BRAVO™ mobile app.

SPECIFICATIONS

Ambient Operating Temperature Range: -40°F to +158°F [-40°C to +70°C]
Maximum Working Pressure: 150 PSI [1034 kPa]
Compressor Duty Cycle: Continuous at 100 PSI [689.5 kPa]
Ingress Protection: IP67 (Requires compressor with remote-mounted intake filter)
Wireless Connectivity Range: 30 ft [10 m] minimum
Standalone Remote Available - The added HP10660 handheld remote gives you full air spring control after successful set-up within the mobile BRAVO Wireless Control App.
*Please note: A mobile app is required for initial set-up, servicing, and system notifications.

ADD-ONS FOR A COMPLETE SET-UP

Air Tank Compatible - Pair with the HP10718 (½ gallon) or HP10719 (2.5 gallon) air tank for increased volume and faster fill times.
Expandable System - Add the HP10720 water separator to protect against moisture and corrosion with DriAir™ Technology, or the HP10723 onboard air accessories kit to inflate tires and run pneumatic tools.

RATHER HAVE A COMPLETE KIT? CHOOSE BETWEEN

HP30040-CB1 (½ gallon option): Includes the HP30040-QM Wireless Controller, Water Separator Kit, Air Accessory Kit, and ½-gallon Air Tank (remote not included).
HP30040-CB2 (2.5 gallon option): Includes the HP30040-QM Wireless Controller, Water Separator Kit, Air Accessory Kit, and 2.5-gallon Air Tank (remote not included).

🔧 For Guys Who Expect More from Their Truck and Their Gear

The HP30040-QM-R is made for truck owners who don’t cut corners. If your pickup sees real work and real weight, this is the wireless control system you want backing your air springs. Engineered for maximum output and rock-solid reliability, it’s the smart upgrade that delivers serious value.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DOWNLOAD THE APP HERE:

*Please note: A mobile app is required for initial set-up, servicing, and system notifications.

Vehicle Application

Universal

Application Notes

Works with all existing air spring products
Compatible with iOS™ and Android™ devices

Features

Waterproof 425 Series Compressor - Up to 150 PSI, 100% duty cycle at 100 PSI, and a 1.75 CFM fill rate. Sealed to IP67 for total weatherproof durability in any conditions.
Billet Aluminum Control Manifold – Premium materials for long-lasting, leak-free performance.

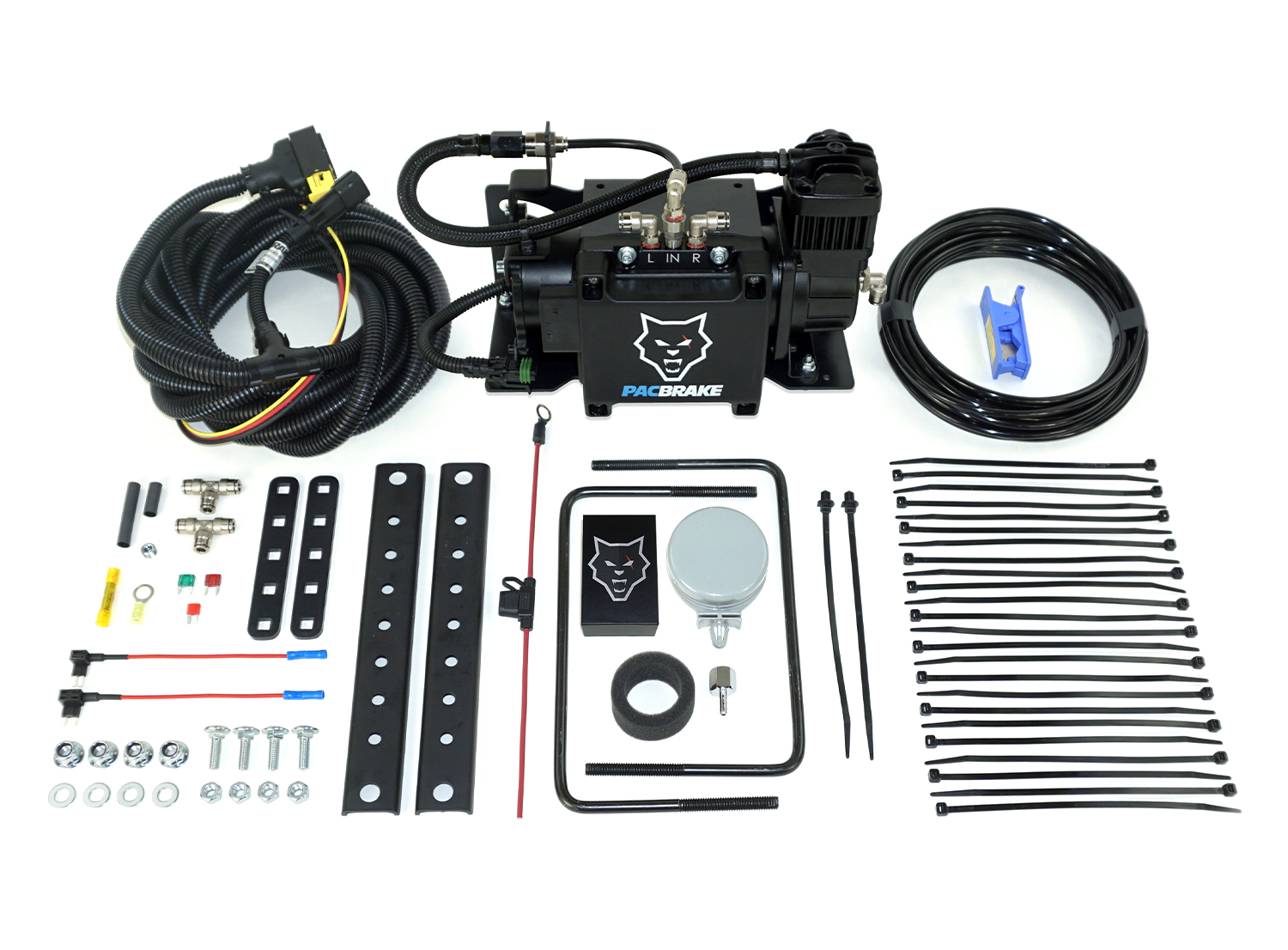

Ultra Easy Install - No drilling or cutting required. Push-to-connect air fittings and pre-assembled wiring harness connectors get you ready in under an hour.
Wireless Smartphone Control - Adjust air spring pressure from the cab. No more stepping out in the rain or snow to hunt down an air pump.
Real-Time Pressure Feedback & Setup Assist™ - Monitor your PSI live and catch leaks before they become problems, right from the mobile app.
Single or Dual Path Mode - Simultaneous fill and upgrade to independent left/right control later, all without buying a new kit.
Ignition switched power for zero parasitic battery drain.
Ultra quiet operation for maximum comfort.
